Extension Springs - Specification Form
Contact Information (Required)
Mandatory Specifications

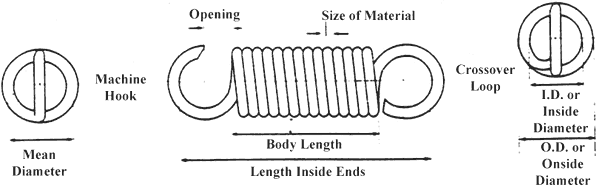

1. Outside Diameter a. in. (mm) max, or b. in. (mm) +- in. (mm)
2. Free Length Inside Ends ins. (mm)
3. Load Load lb.(N) +- lb.(N) @ in.(mm) Load lb.(N) +- lb.(N) @ in.(mm) Rate lb./in.(N/mm) +- lb./in.(N/mm) between in.(mm) and in.(mm)
4. Maximum extended length (inside ends) without set in. (mm), +- in. (mm)
5. Relative loop position, degree max. seperation of loop planes.
6. Direction of helix Left Right Optional

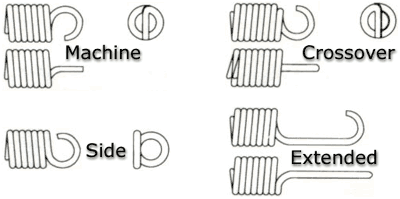

7. Type of ends Machine Crossover Side Extended
8. Material Type Music Wire Stainless Steel Hard Drawn Other Size in.(mm)., +- in. (mm)
9. Finish None Plating Painting Passivation Deburr Other (If Other)
10. Est. Ann. Usage
Comments:
